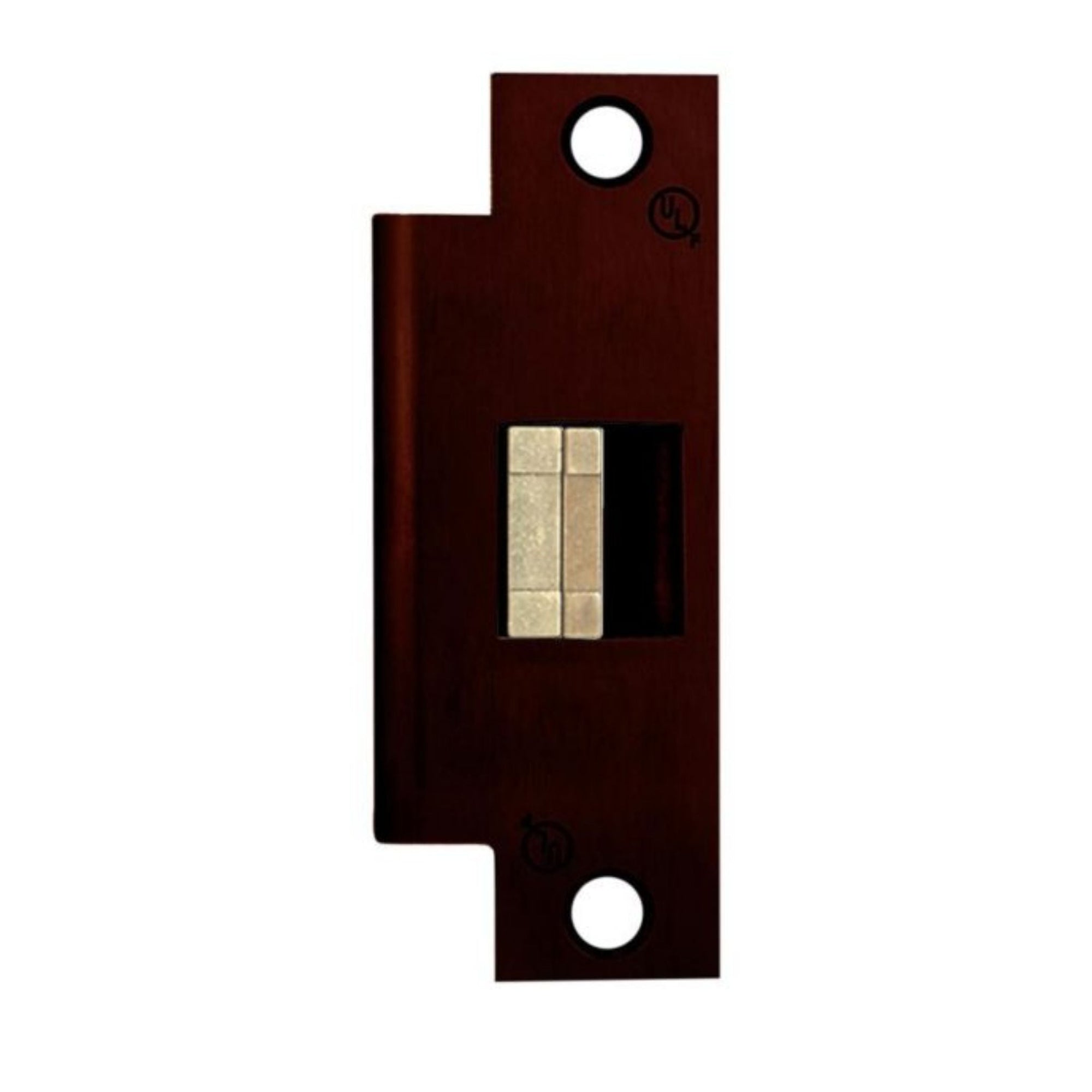

HES UNL-12-613 UnLatch Electric Strike for Cylindrical Locks 12-Volt (12VDC) Oil Rubbed Bronze - The Lock Source

Features

Fail secure (standard)
No cutting or altering of the jamb required
Accommodates up to 5/8" latchbolt
Fits standard ANSI 4-7/8" strike cutout
Motorized, no solenoids
Fully concealed installation
Maintains deadlatch function at all times
Continuous duty
Releases under pre-load
Latch status sensor is standard (SPDT)
UL Listed
Finish: Oil Rubbed Bronze (613) finish

Specification Data

12 VDC (continuous duty) – Inrush – 3 Amps – Standby Current – 300 mA
1500 lbs [680kg] static
-20? to 125? F [-29? to 52? C]
UL 10C Listed, 3-hour single door
NFPA-252 fire door compliant

Securitron UNL-12-613 UnLatch Cylindrical Electric Strike (12VDC), Oil Rubbed Bronze

$583.00 $669.00 You save: 12% ($86.00)

SKU-HES-UNL-12-613

Securitron UNL-12 UnLatch Strike: The universal compact, high performance, no cut electromechanical motorized electric strike for use with cylindrical locksets.

The Securitron UNL UnLatch Strike is designed for easy installation, the Securitron UNL is capable of releasing under preload conditions and accommodates latchbolts up to 5/8" throw. Strong enough to withstand windstorm conditions, the Securitron UNL is the UL listed, fire rated electric strike that includes lock monitoring standard and provides ANSI/BHMA Grade 1 holding power.

Securitron UNL-12-613 UnLatch Cylindrical Electric Strike (12VDC), Oil Rubbed Bronze
