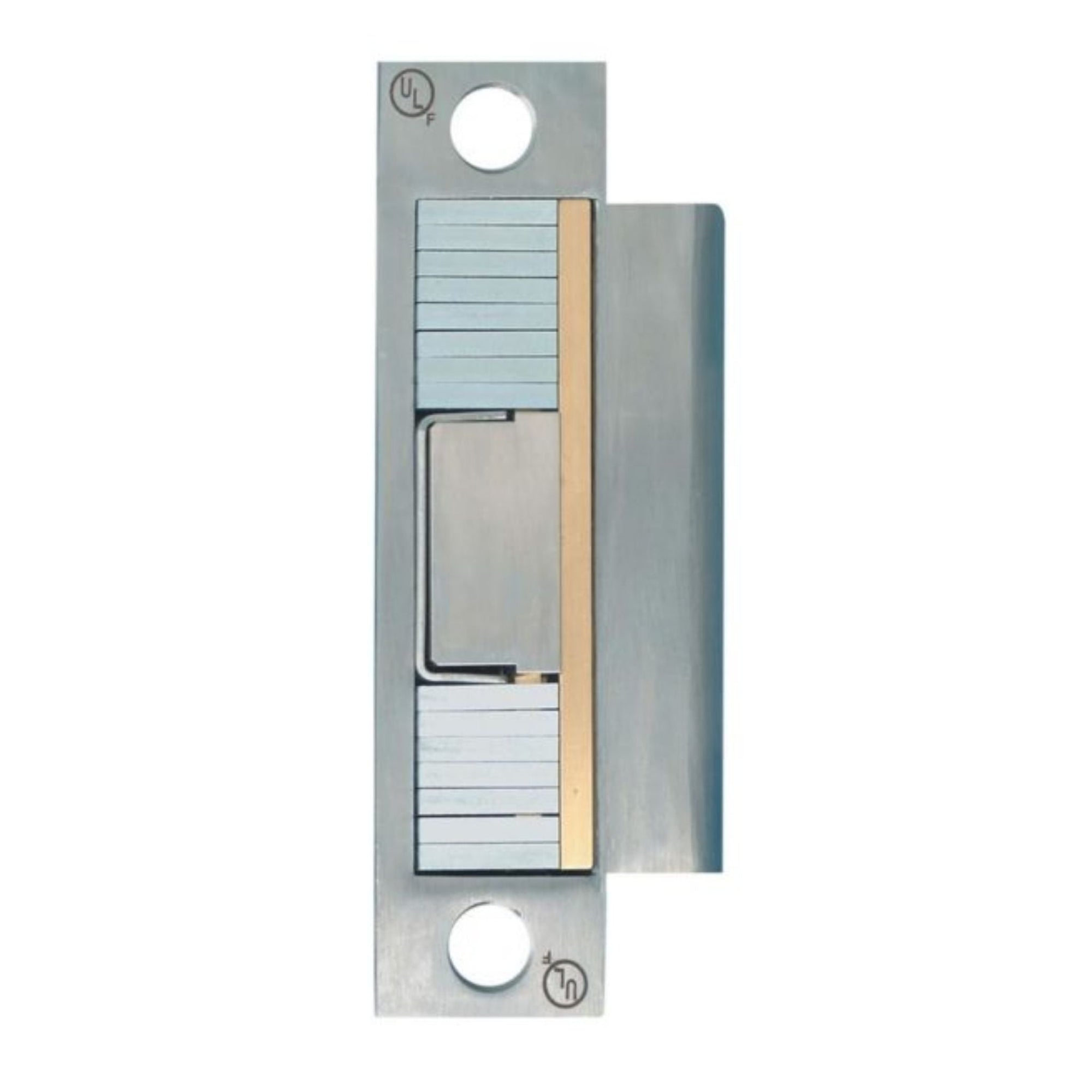

HES MUNL-24-626 UnLatch Electric Strike for Mortise Locks 24-Volt (24VDC) Satin Chrome - The Lock Source

Features

Fail secure (standard)
No cutting or altering of the jamb required
Accommodates up to 5/8" latchbolt
Fits standard ANSI 4-7/8" strike cutout
Motorized, no solenoids
Fully concealed installation
Maintains deadlatch function at all times
Continuous duty
Releases under pre-load
Latch status sensor is standard (SPDT)
Strike body depth 1-7/8" [47.6mm]
Finish: Satin Chrome (626) finish

Specification Data

24 VDC (continuous duty) – Inrush – 2 Amps – Standby Current – 300 mA
1500 lbs [680kg] static
-20? to 125? F [-29? to 52? C]
UL 10C Listed
NFPA-252 fire door compliant

Securitron MUNL-24-626 UnLatch Mortise Electric Strike (24VDC), Satin Chrome

$624.00 $837.00 You save: 25% ($213.00)

SKU-HES-MUNL-24-626

Securitron MUNL-24 Mortise UnLatch Strike: The universal compact, high performance, no cut electromechanical motorized strike for use with mortise locksets without deadbolts.

The Securitron MUNL Mortise UnLatch Strike is designed for easy installation, the Securitron MUNL is capable of releasing under preload conditions and accommodates latchbolts up to 3/4" [19mm] throw. Strong enough to withstand windstorm conditions, the Securitron MUNL is the UL listed, fire rated electric strike that includes lock monitoring standard, provides ANSI/BHMA Grade 1 holding power and includes field adjustability for latch and deadlatch positions.

Securitron MUNL-24-626 UnLatch Mortise Electric Strike (24VDC), Satin Chrome
