HES 9600 Series Electric Strike

The HES 9600 Series Electric Strike Is a Windstorm Rated, Surface Mounted Electric Strike Designed to Accommodate Rim Exit Devices with a 3/4" Throw Latch. All Components Are Completely Encased Within the 3/4" Thick Stainless Steel Housing of the Strike, and Not Cutting of the Frame is Ever Required for Installation. Simply Place the Electric Strike on the Surface of the Frame, Align it with the Exit Latchbolt and Install. The Outdoor Rated 9600 Strike is Field Selectable (Fail Safe or Fail Secure), Is Dual Voltage (12VDC or 24VDC) and Exceeds ANSI Windstorm Ratings.

9600 Series Electric Strike Features

• Installs in Metal or Wood Frames
• Field Selectable: Fail Secure or Fail Safe

• Dual Voltage: 12VDC or 24VDC
• Separate Base and Decorative Cover for Easy Adjustments
• Stainless Steel Construction
• Tamper-Resistant
• Static Strength 2,000 Lbs.

• Dynamic Strength 120 ft-Lbs.
• Endurance 1,000,000 Cycles
• Horizontal Adjustment

• Non-Handed
• Internally Mounted Solenoid
• Accommodates up to 3/4" Pullman Latch
• Five-Year Limited Warranty


Choose Bolt Monitor

• 9600: Standard (No Monitor)
• 9600-LBM: Latchbolt Monitor (LBM)
• 9600-LBSM: Latchbolt Strike Monitor (LBSM)

Choose Finish

• 630 - Satin Stainless Steel

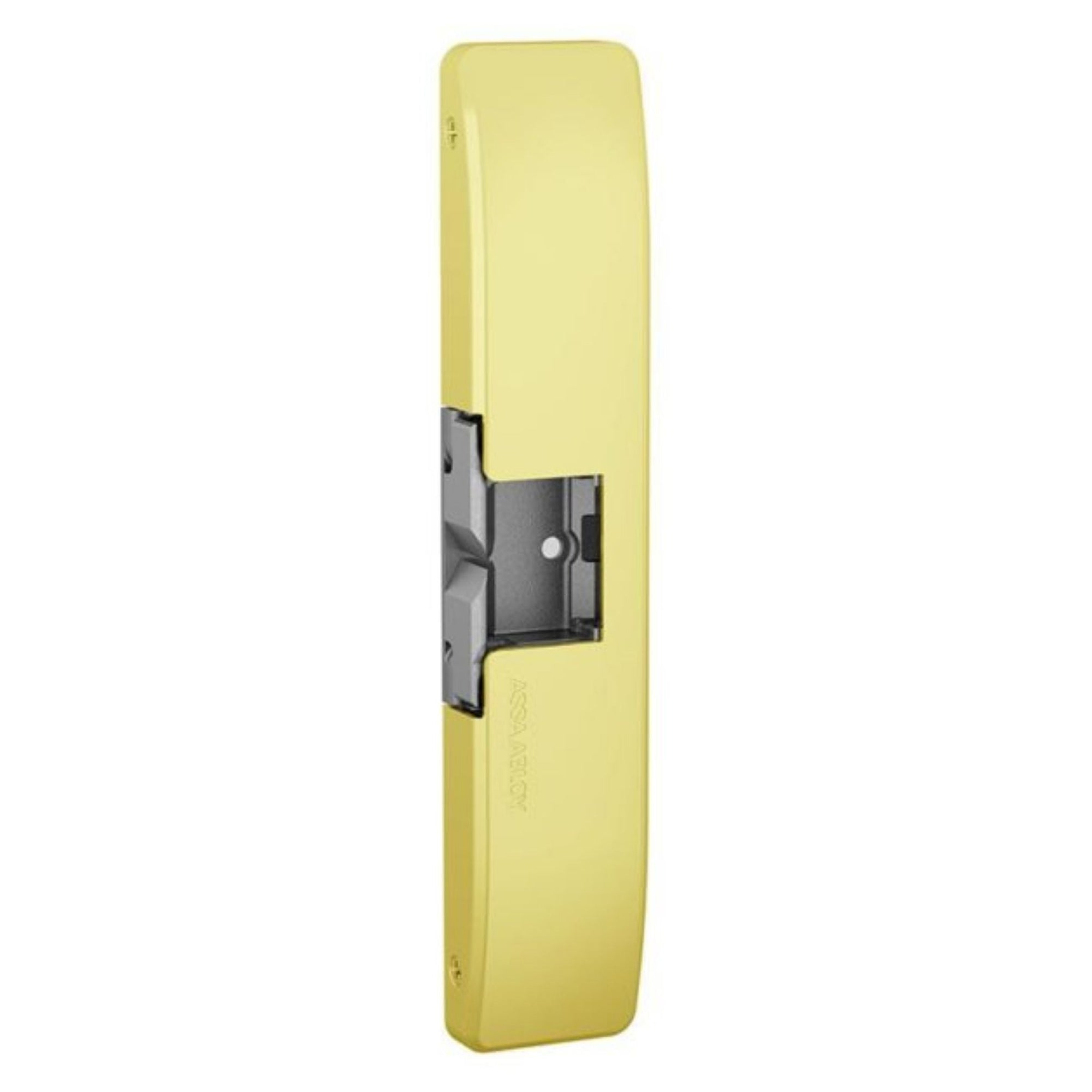

• 605 - Bright Brass

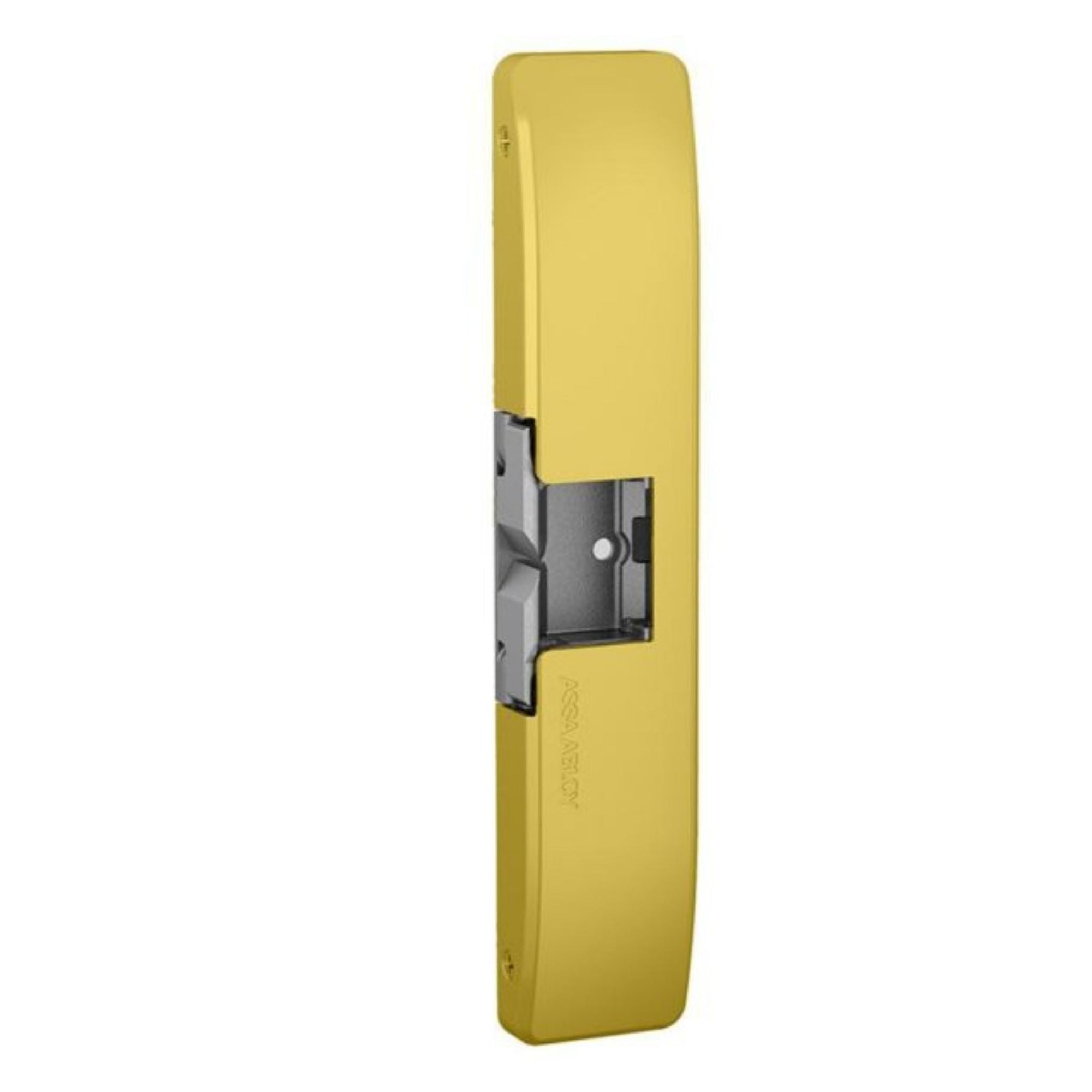

• 606 - Satin Brass

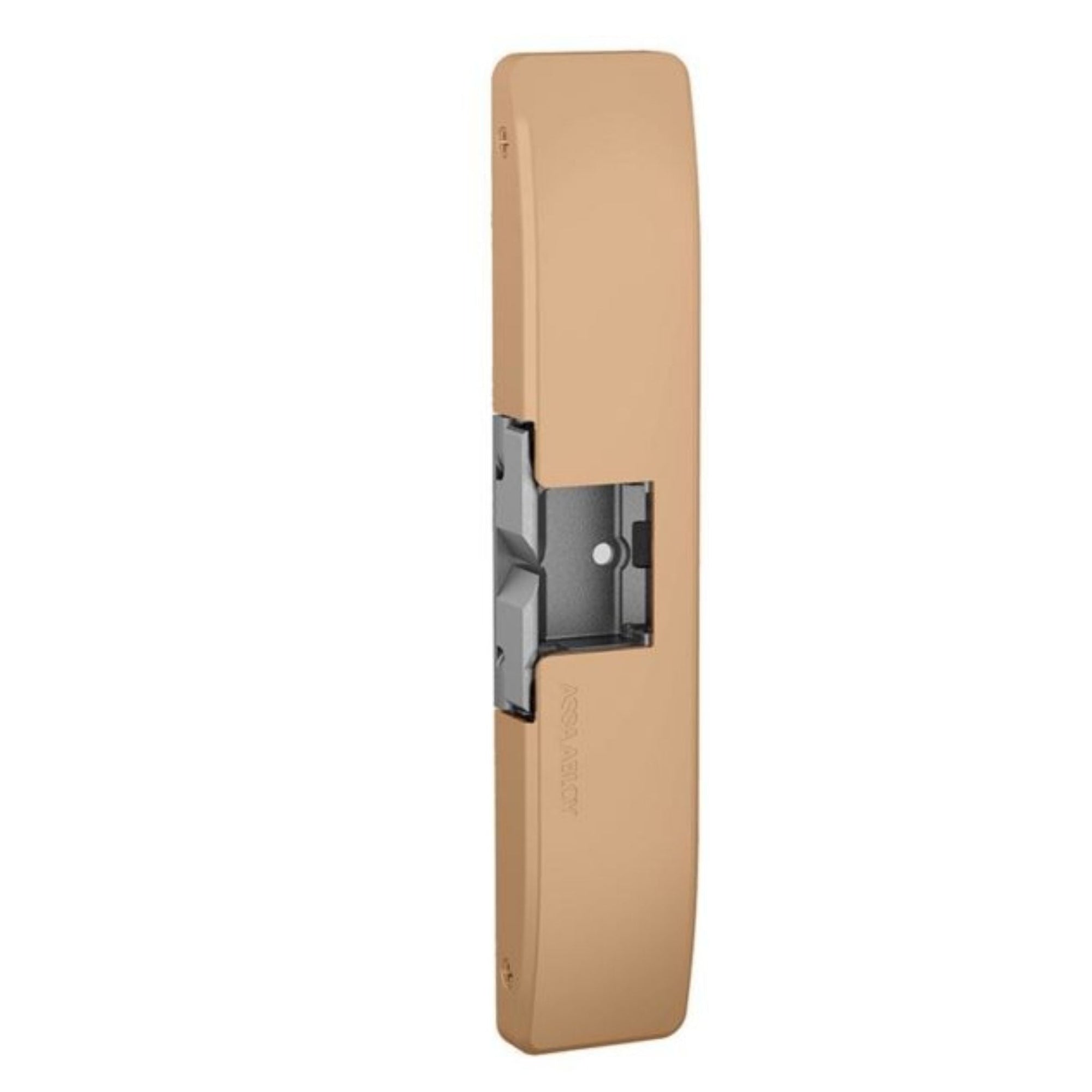

• 612 - Satin Bronze

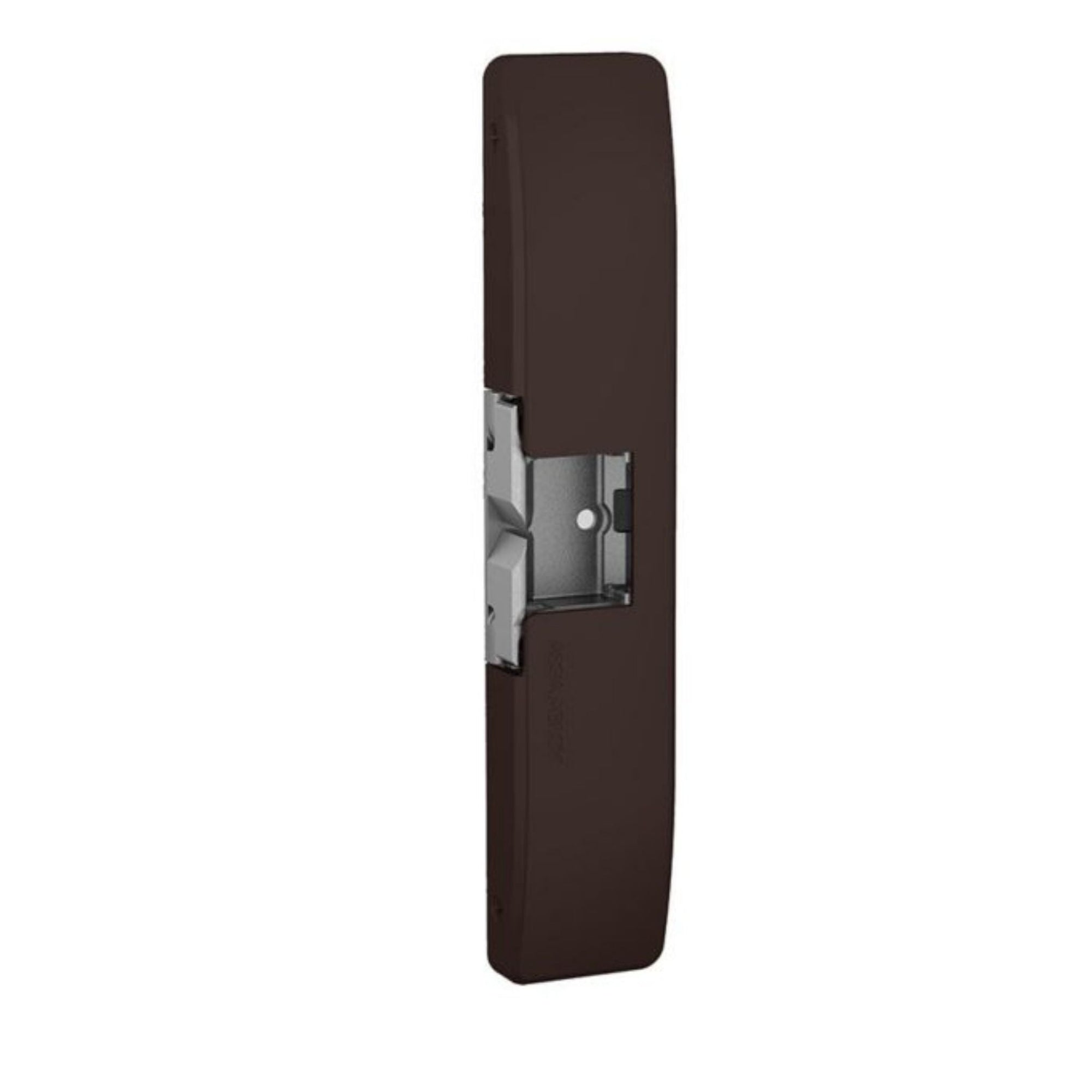

• 613 - Bronze Toned
• 613E - Dark Oxidized Satin Bronze Powder

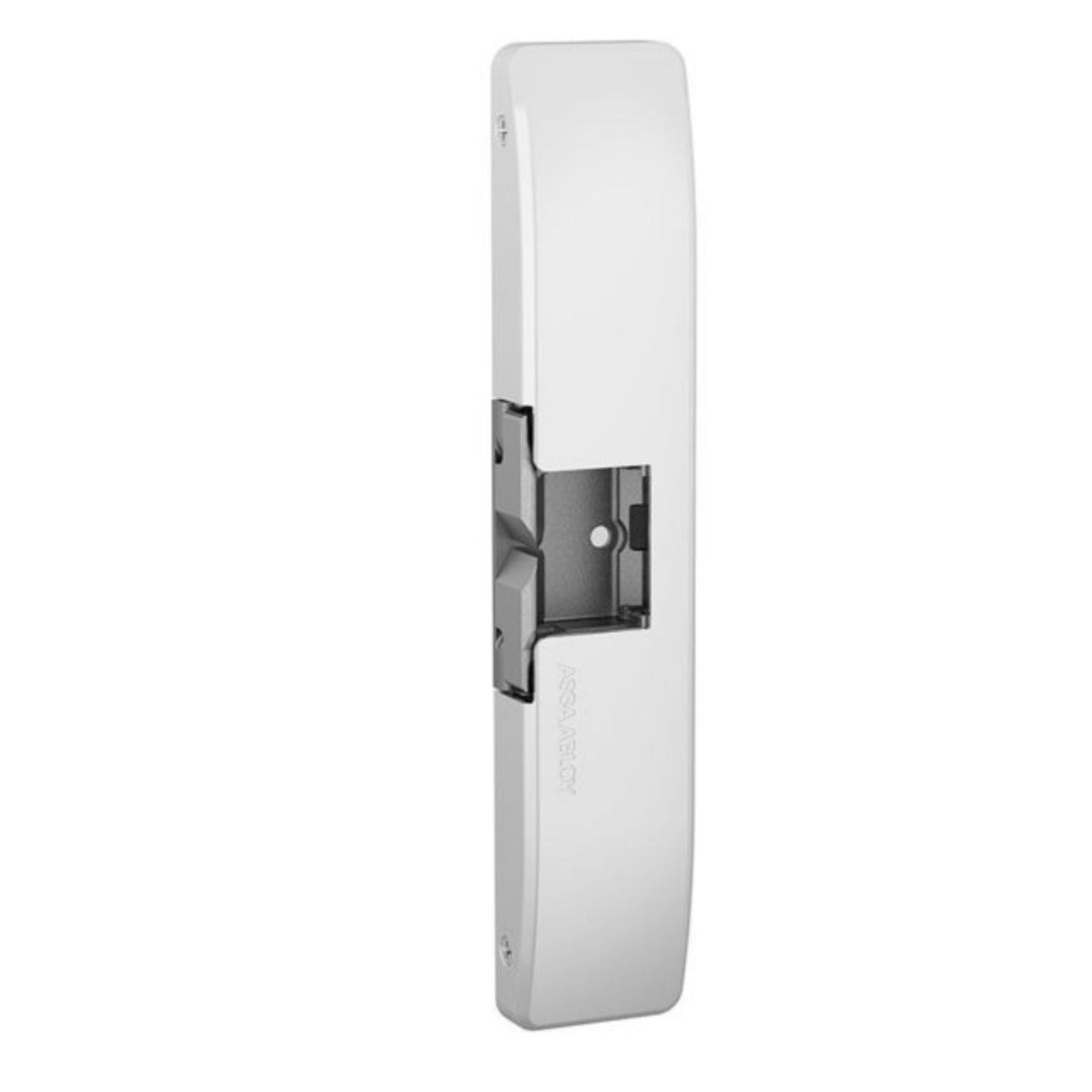

• 629 - Bright Stainless Steel
