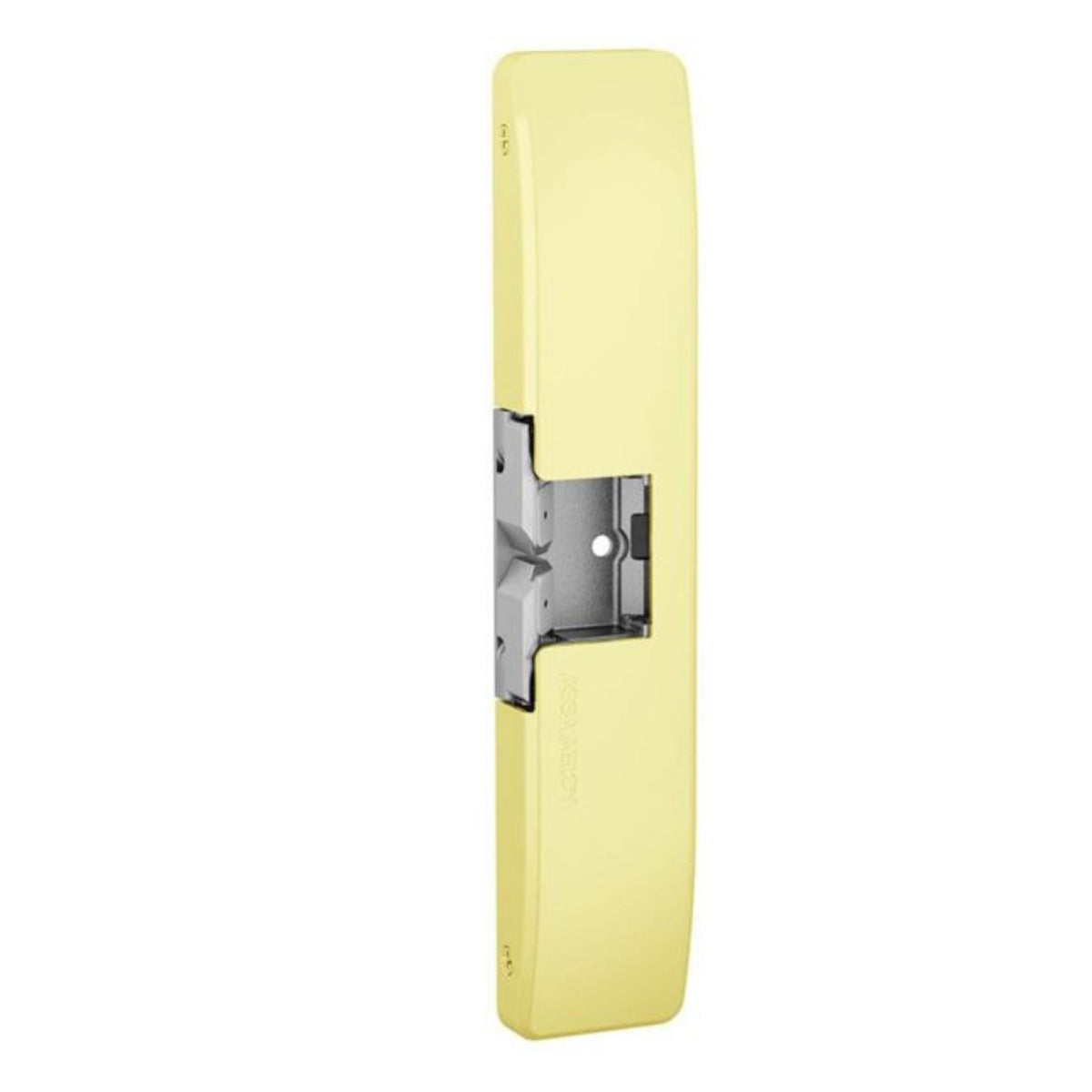

The HES 9500 Series Electric Strike is a three hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" throw Pullman latchbolt. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover.

Features

  • Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
  • Installs in metal and wood frames
  • Wood screws not provided
  • Separate base and decorative cover for easy adjustments
  • Stainless steel construction
  • Tamper-resistant
  • Static strength 1,500 lbs.
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Horizontal adjustability
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" [19mm] Pullman latch
  • Frame Application: Metal & Wood
  • Finish: Bright Brass (605) finish
Specification Data
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL294 listed
  • UL305 listed
  • RoHS compliant
  • Dual voltage 12/24VDC
  • 450 mA at 12VDC/250 mA at 24VDC

    HES 9500-605-LBM Electric Strike, Latchbolt Monitor, Bright Brass

    SKU-HES-9500-605-LBM

    HES 9500-605-LBM Surface Mounted Electric Strike: The 9500 works with rim exit devices up to 3/4" throw Pullman latchbolt.

    The HES 9500 exceeds Grade 1 standards for strength and performance. It is field selectable for fail safe / fail secure operation, and for 12 or 24 VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire rated frames.

    The Durable, Fire-Rated Surface Mounted Solution!
