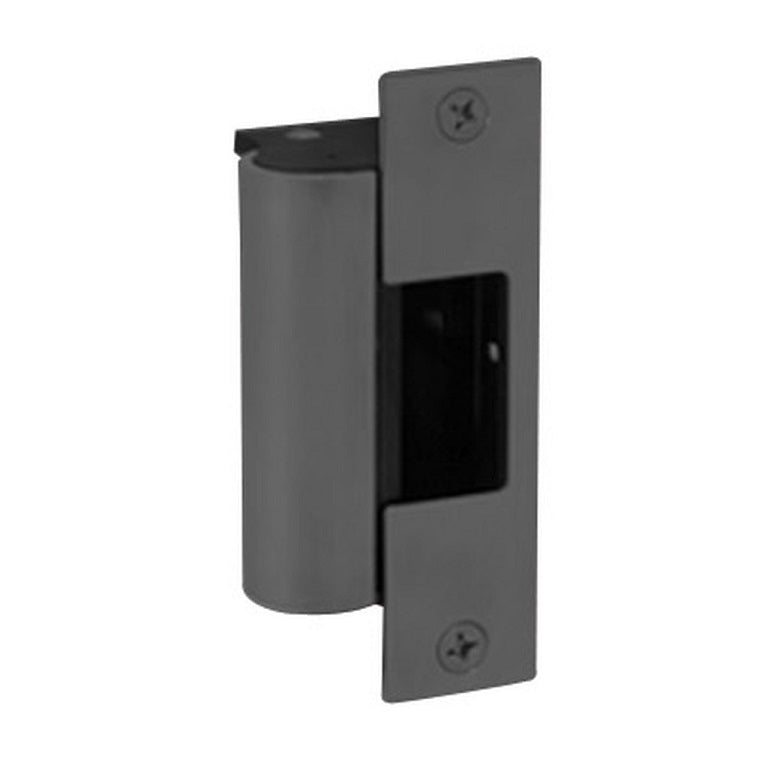

HES 1006 BLK Black Electric Strike Bodies Available Fail Secure or Fail Safe and with Optional Latch Bolt Monitor (LBM) or Latch Bolt Strike Monitor (LBSM) - The Lock Source

Description
Specifications
Video
Related Items

HES 1006 Series Electric Strike for 4-7/8" ANSI Strike

The H.E.S. 1006 Series Works With All Cylindrical and Mortise Locksets With or Without a Deadbolt. The HES 1006 Strike Features a Dual Interlocking Plunger Design and its Heavy Duty Stainless Steel Construction Enables the 1006 Series to Exceed All Electric Strike Standards. With Multiple Faceplate Options, the HES 1006 Fully Accommodates Every Lock Designed to Work Within an ANSI 4-7/8" Strike Plate.

The Strongest, Most Versatile Electric Strike Available

Stainless Steel Construction
Tamper-Resistant
Static Strength 3070 lbs. (Fail Secure)
Dynamic strength 350 ft-lbs. (Fail Secure)
Endurance 1,000,000 Cycles
Fail Secure (Standard)
Dual Voltage 12VDC or 24VDC Continuous Duty
Non-Handed
Internally Mounted Solenoid
Accommodates Up to 1-Inch Deadbolt
Plug-In Connector
Full Keeper Shims for Horizontal Adjustment
Trim Enhancer
Strike Body Depth 1-11/16" (43mm)
Frame Application: Metal & Wood
Choose Finish: 630 (Satin Stainless Steel), 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Bronze Toned), 629 (Bright Stainless Steel), BLK (Black)
Choose Function: Fail Secure (Standard) or Fail Safe (F)
Choose Bolt Monitor: Latchbolt Monitor (LBM) or Latchbolt Strike Monitor (LBSM)

HES 1006 Series Electric Strike for Cylindrical Locks with ANSI Strike

ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitable for outdoor use (UL294 listed)
RoHS compliant
UL 10C fire-rated, 3-hour single door (fail secure only)
UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
CAN/ULC-S104 fire door conformant
NFPA-252 fire door compliant
ASTM-E152 fire door complaint
ANSI/SD1 A250.13 windstorm resistant
Florida Building Code approved TAS 201, 202, 203
ANSI-ASTM E330
Sustainability documentation

HES 1006 Series Heavy Duty Electric Strikes

$583.00 $700.00 You save: 16% ($117.00)

SKU-HES-1006-630

HES 1006 Electric Strike: The H.E.S. 1006 Series Is the Strongest and Most Versatile Electric Strike Available! Choose Finish: 630 (Satin Stainless Steel), 605 (Bright Brass), 606 (Satin Brass), 612 (Satin Bronze), 613 (Bronze Toned), 629 (Bright Stainless Steel), BLK (Black). Choose Function: Fail Secure (Standard) or Fail Safe (F); Choose Bolt Monitor: Standard (1006), Latchbolt Monitor (1006-LBM) or Latchbolt Strike Monitor (1006-LBSM).
