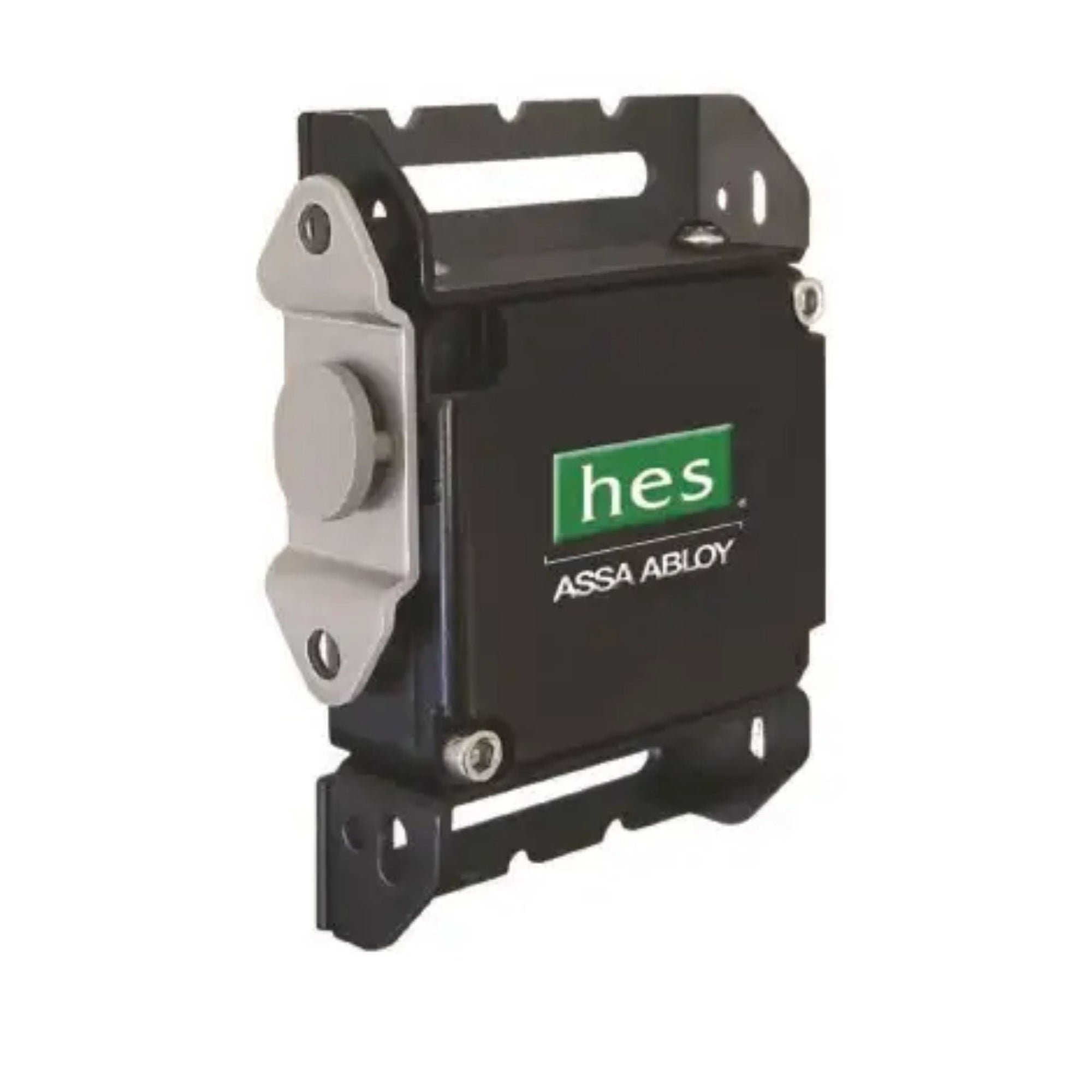

660-24VDC Cabinet Lock, 24-Volt

The 660-24 Cabinet Lock Provides Electronic Access Control to Cabinets, Drawers & Display Cases. The 660-24V Features Over 1000 Lbs Holding Force and Is Ideal for Corporate and Government Applications.

Standard Features

• Static strength 1,000 lbs.
• Dynamic strength over 100 ft-lbs.
• Endurance 1,000,000 cycles
• 24-Volt (24VDC)
• All metal construction
• Adjustable mounting brackets with final lockdown feature
• 6 foot cable lead
• Patents: 8,562,040; 7,878,560
• RoHS compliant
• 3 year limited warranty

Electrical

• • 24VDC
  • 12 - 24 VDC +/- 10%
  • 240 mA @ 12VDC continuous duty
  • 120 mA @ 24VDC continuous duty
  • 700 mA @ 12VDC (pre-load option)
  • 350 mA @ 24VDC (pre-load option)
