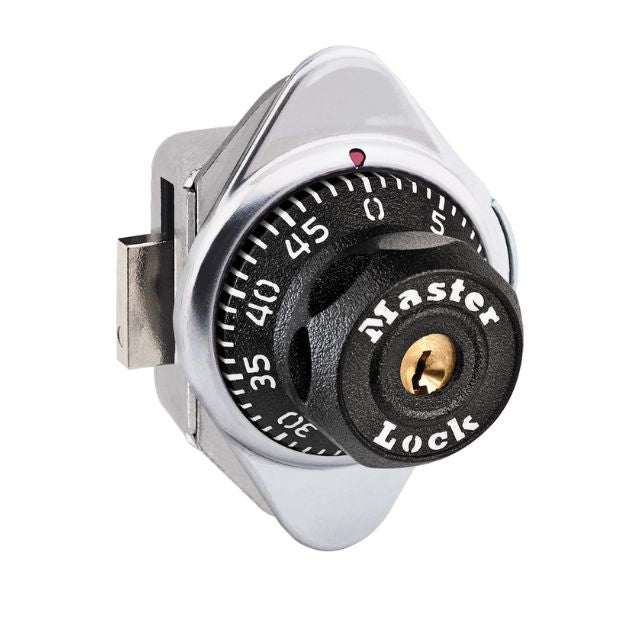

Our Master Lock 1630 Series Locker Lock Section Features No. 1630 Built-In Padlocks Pre-Keyed to Match Existing Control Key Numbers.

Q: What Type of Lock Is The No. 1630 Series Padlock?

A: The 1630 Series Are Built-In Combination Locker Locks With Key Override Feature.

Q: What Type of Lockers Work With the 1630 Padlocks?

A: The No. 1630 Series Padlocks Fit Standard Lift Handle Lockers With Hinges On the Right.

Q: Which 1630 Padlock Will Work With a Lift Handle Locker Hinged on the Left?

A: Since the 1631 Padlock Was Discontinued, the 1671 Padlock Should Be Used For All Left-Hinged Lift Handle Lockers.

Q: Will the 1630 Series Locker Locks Come With Pre-Set Combinations?

A: Yes, the No. 1630 Series Padlocks Come With Five (5) Pre-Set Combinations.

Q: Does the 1630 Series Built-In Padlocks Feature Key Override?

A: Yes, In Addition to a 3-Number Combination the 1630 Series Locks All Feature Key Override for Supervisor Access.

Q: Are No. 1630 Series Control Keys Sold Separately?

A: Yes, Because They Provide Supervisory Access All K1630 Control Keys Must Be Sold Separate.

What Is The Width of the No. 1630 Locks?

A: The No. 1630 Series Padlocks Are 1-7/8" Wide.

Q: Are Extension Kits Available?

A: Yes, Extension Kits Are Available For Doors With A Thickness of 11/16" to 3/4"

Q: What Is The Key Range of the No. 1630 Locker Locks?

A:The 1630 Locker Padlocks Available in the Following Two (2) Key Ranges:

    - Key Range 1: F100 - F999

    - Key Range 2: S100 - S999

Q: What Type of Dials Are Available For the 1630 Built-In Locks?

A: The 1630 Series Padlocks Are Available With Plastic or Metal Dials.

Q: What Dials Colors Are Available For The No. 1630 Series Padlocks?

A: The 1630 Series Combination Locks Are Available in Black, Blue, Green, Purple and Red Dials.

Q: Are All 1630 Series Locks Available In All Dial Colors?

A: Yes, All No. 1630 Padlocks Are Available With Metal Dials In All Colors. However, The Plastic Dial Is Only Available In Black.

    - 1630 (Black Plastic Dial)

    - 1630MD (Black Metal Dial)

    - 1630MDBLU (Black Metal Dial)

    - 1630MDGRN (Green Metal Dial)

    - 1630MDPRP (Purple Metal Dial)

    - 1630MDRED (Red Metal Dial)
