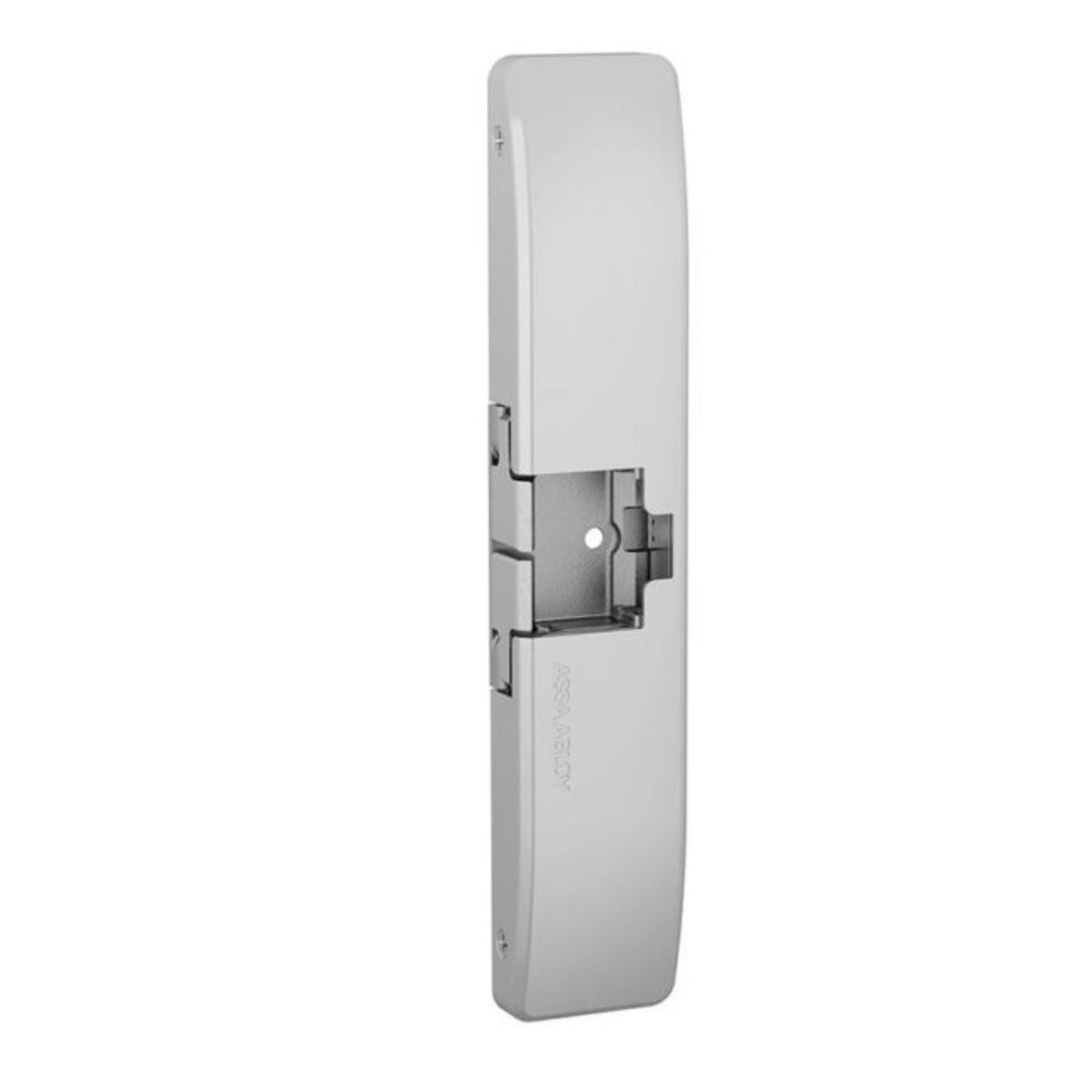

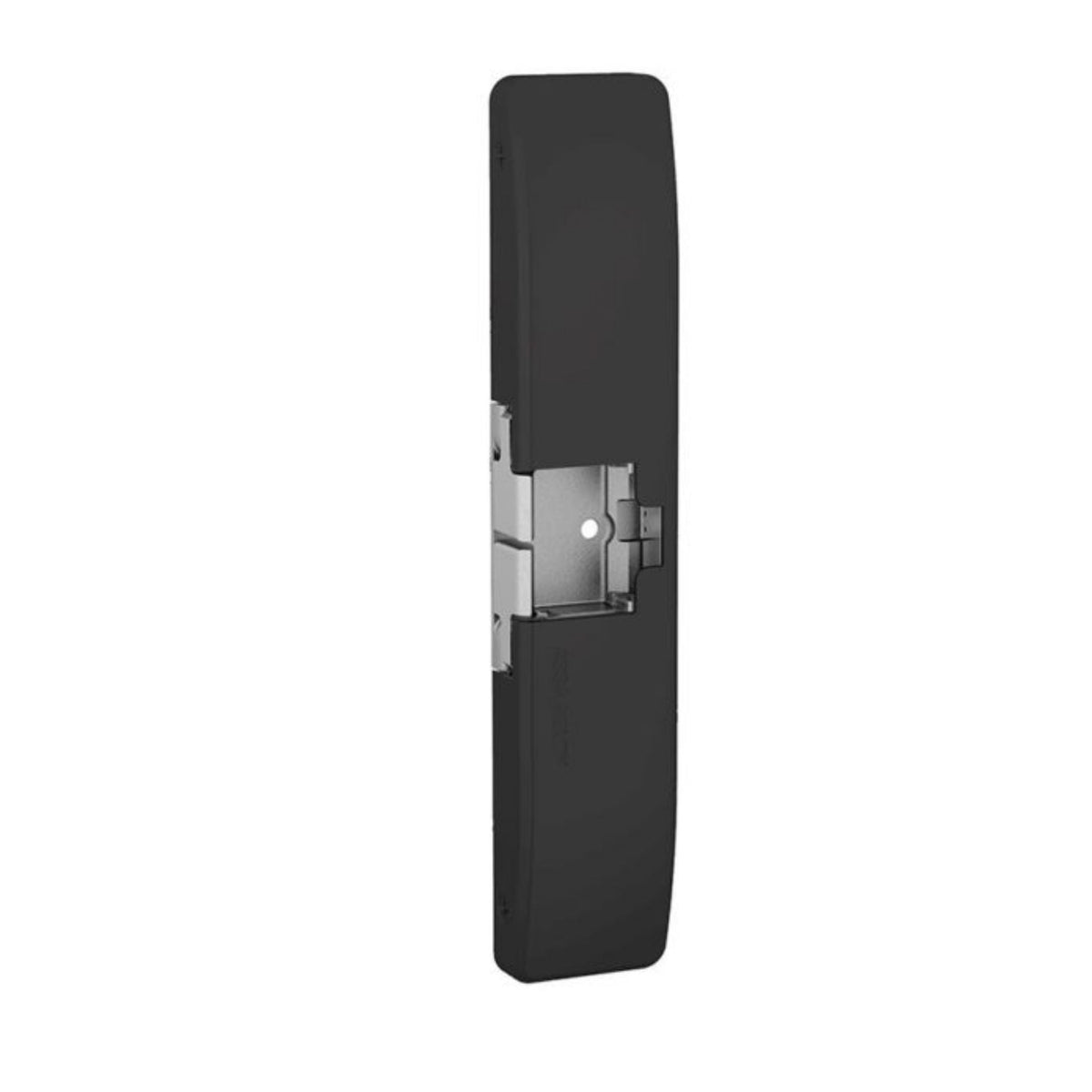

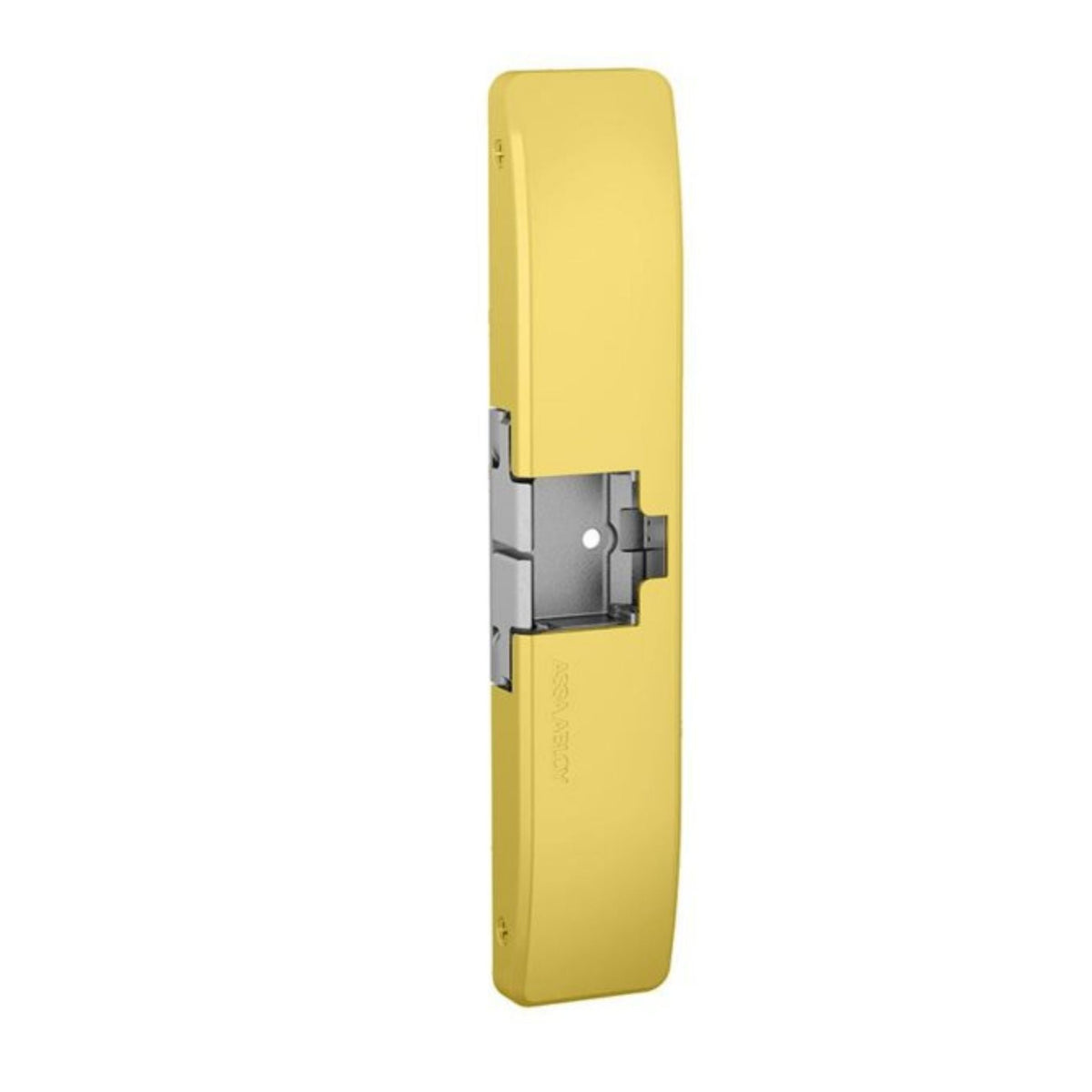

The HES 9700 Series Electric Strikes Are Heavy Duty, Surface Mounted Door Strikes Designed to Accommodate the Corbin Russwin SecureBolt and Yale SquareBolt Exit Devices. All Components Are Completely Encased Within the 3/4" Thick Stainless Steel Strike Housing and Requires to Cutting on the Frame for Installation. The HES 9700 Strike is Outdoor Rated, Field Selectable (Fail Secure or Fail Safe) and Dual Voltage (12VDC or 24VDC). The 9700 Also Exceeds ANSI Windstorm Testing.

9700 Series Electric Strike Features

• Compatible with Corbin Russwin SecureBolt and Yale SquareBolt
• Field Selectable: Fail Secure or Fail Safe

• Dual Voltage: 12VDC or 24VDC
• Separate Base and Decorative Cover for Easy Adjustments
• Stainless Steel Construction
• Tamper-Resistant
• Static Strength 2,500 lbs.

• Dynamic Strength 120 ft-lbs.
• Endurance 1,000,000 Cycles
• Horizontal adjustment

• Non-handed
• Internally mounted solenoid
• Five-Year Limited Warranty


Choose Bolt Monitor

• 9700: Standard (No Monitor)
• 9700-LBM: Latchbolt Monitor (LBM)
• 9700-LBSM: Latchbolt Strike Monitor (LBSM)

Choose Finish

• 630 - Satin Stainless Steel
• 605 - Bright Brass
• 606 - Satin Brass
• 612 - Satin Bronze
• 613 - Bronze Toned
• 613E - Dark Oxidized Satin Bronze Powder
• 629 - Bright Stainless Steel
