    HES 8000C-630-LBM Complete Pac Electric Strikes Includes 8000 Strike Body with 801 & 801A Faceplates with Latchbolt Monitor (LBM) - The Lock Source

    Features

    • Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
    • No cutting on frame required
    • Vertical adjustability to accommodate door sag and misalignment
    • Tamper resistant
    • Static strength 1,500 lbs.
    • Dynamic strength 70 ft-lbs.
    • Endurance 500,000 cycles
    • Field selectable fail safe/fail secure
    • Dual voltage 12 or 24 VDC/VAC
    • Non-handed
    • Internally mounted solenoid
    • Accommodates 1/2"-5/8" cylindrical latchbolt (5/8" with 1/8" door gap)
    • Strike body depth 1-1/16"
    • Strike body width decreased to 1-7/16" to increase frame compatibility
    • Frame Application: Metal, Wood & Aluminum
    • Finish: Satin Stainless Steel (630) finish
    Specification Data
    • ANSI/BHMA A156.31, Grade 1
    • UL 1034 burglary-resistant listed and suitable for outdoor use
    • UL294 listed
    • RoHS compliant
    • Dual voltage 12/24 VDC/VAC
    • 240 mA at 12 VDC/120 mA at 24 VDC
    • PoE friendly

      HES 8000C-630-LBM Electric Strike, Complete Pac, Satin Stainless Steel

      $338.00 $385.00 You save: 12% ($47.00)

      SKU-HES-8000C-630-LBM

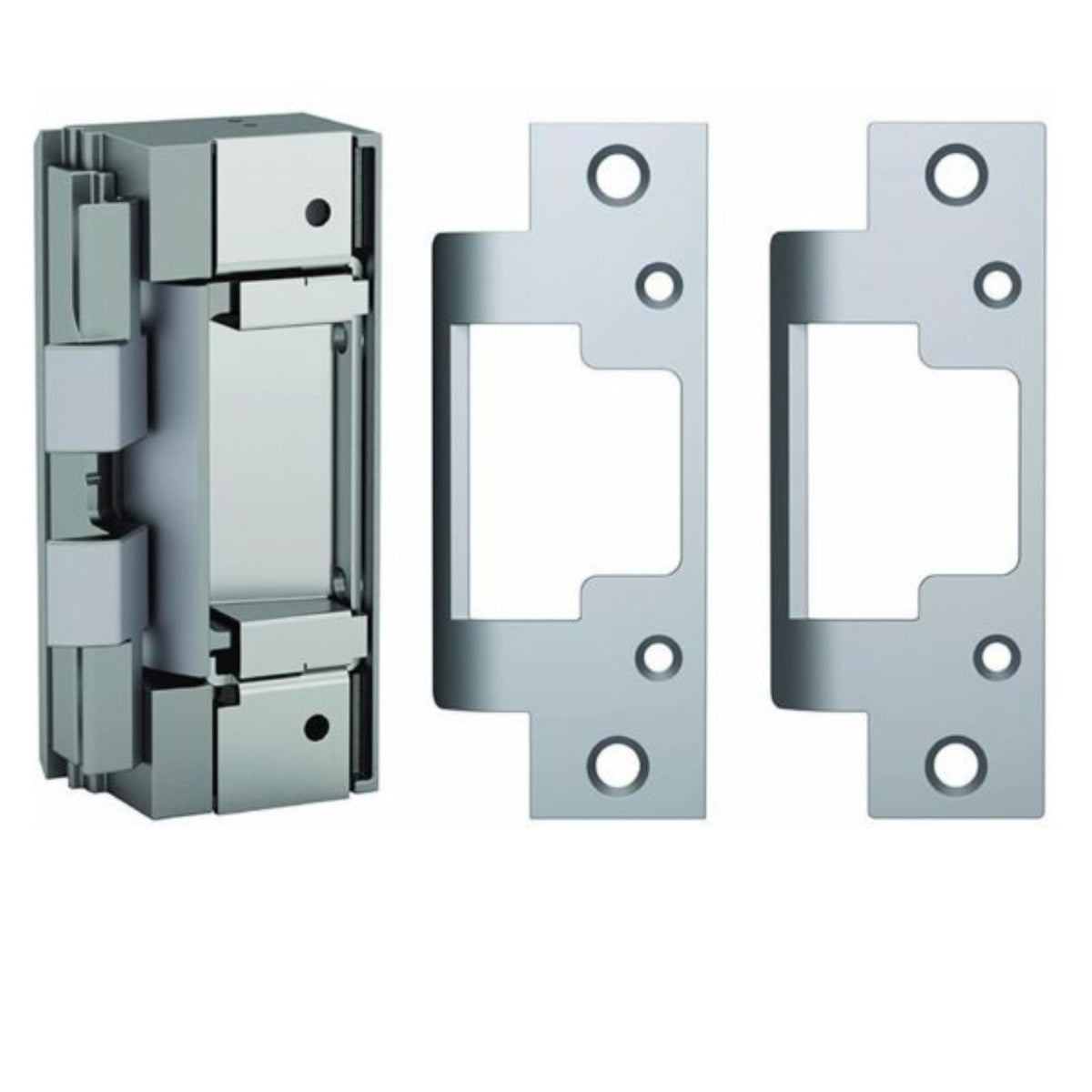

      HES 8000C-630-LBM Electric Strike: The 8000C works with cylindrical locksets and accommodates latchbolts up to 5/8" throw. Included in the box are a 8000C strike bodyand 2 faceplates (801 and 801A).

      The HES 8000C Electric Strike is a compact, high performance electric strike featuring a unique concealed design for use with cylindrical locksets. No cutting on the frame is required. Simply remove the existing strike plate, adjust the vertical alignment feature to the latchbolt centerline and install. Its strength is derived from a unique keeper pin locking design, enabling the HES 8000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

      The Concealed Electric Strike Solution for Cylindrical Locksets!
