Features

Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 1,00,000 cycles
Field selectable fail secure/ fail safe
Dual voltage 12 or 24 VDC/VAC
Non-handed
Internally mounted solenoid
Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
Strike body depth 1-1/16"
Plug-in connector
Trim enhancer included
Frame Application: Metal & Wood
Finish: Satin Stainless Steel (630) finish

Specification Data

ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitble for outdoor use
UL 294 listed
RoHS compliant
Dual voltage 12/24 VDC/VAC
240 mA at 12 VDC/120 mA at 24 VDC
PoE friendly

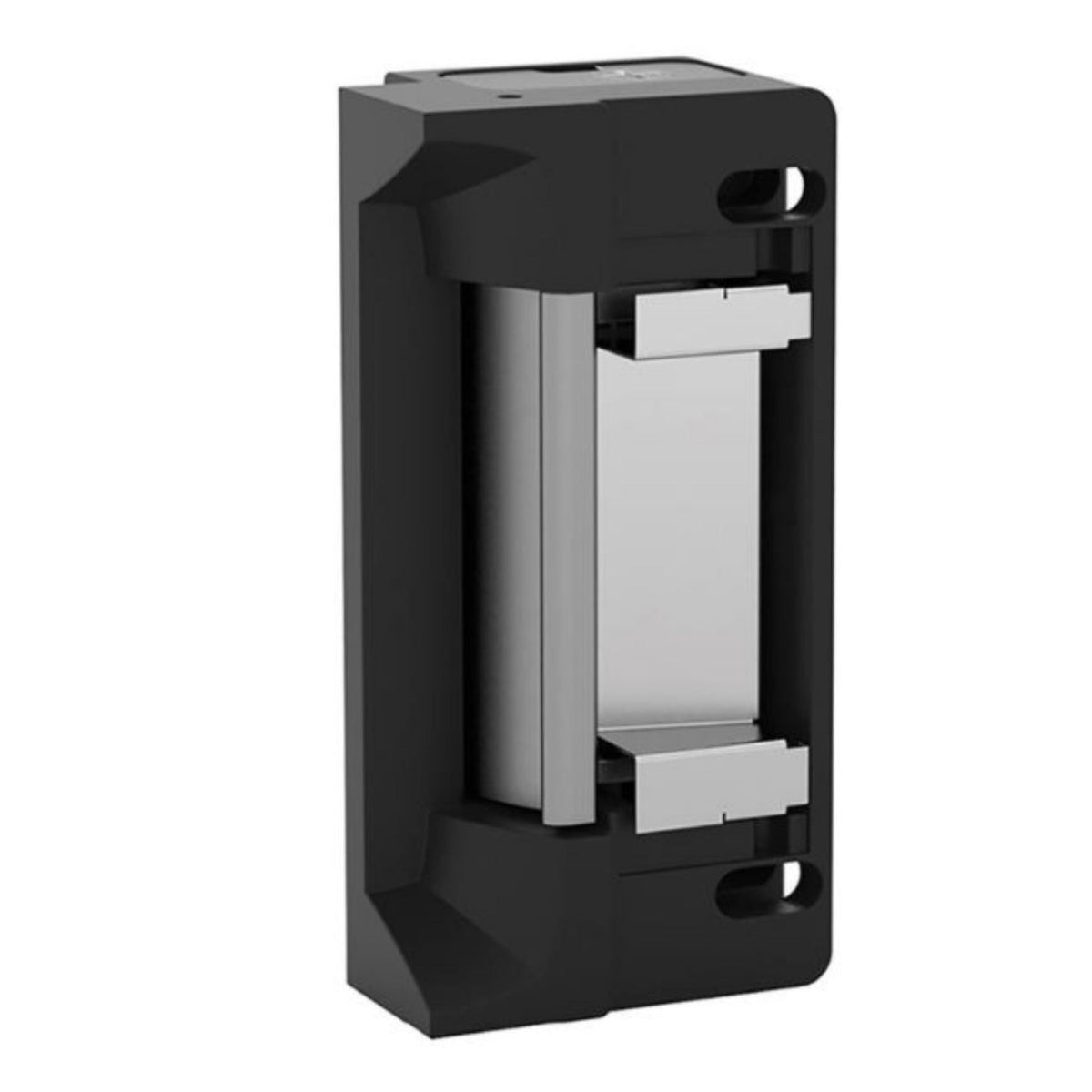

HES 5200-630-LBM Electric Strike, Latchbolt Monitor, Satin Stainless Steel

$191.83 $274.00 You save: 29% ($82.17)

SKU-HES-5200-630-LBM

HES 5200-630-LBM Electric Strike: The 5200 works with cylindrical locksets up to 3/4" throw latchbolt.

The HES 5200 Electric Strike features an in-frame horizontal adjustable design to simplify the installation process. This feature allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 3/4" throw.

The Grade 1, Low-Profile Solution with Horizontal Adjustability!

HES 5200-630-LBM Electric Strike, Latchbolt Monitor, Satin Stainless Steel
