HES 5000C 630 Complete Pac Electric Strike for Latchbolt Locks - The Lock Source

Features

Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 70 ft-lbs.
Endurance 500,000 cycles
Field selectable fail secure/ fail safe
Dual voltage 12 or 24 VDC/VAC
Non-handed
Internally mounted solenoid
Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
Strike body depth 1-1/16"
Plug-in connector
Trim enhancer included
Frame Application: Metal & Wood
Finish: Satin Stainless Steel (630) finish

Specification Data

ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitble for outdoor use
UL 294 listed
RoHS compliant
Dual voltage 12/24 VDC/VAC
240 mA at 12 VDC/120 mA at 24 VDC
PoE friendly

HES 5000C-630 Electric Strike, Complete Pac, Satin Stainless Steel

$183.00 $213.00 You save: 14% ($30.00)

SKU-HES-5000C-630

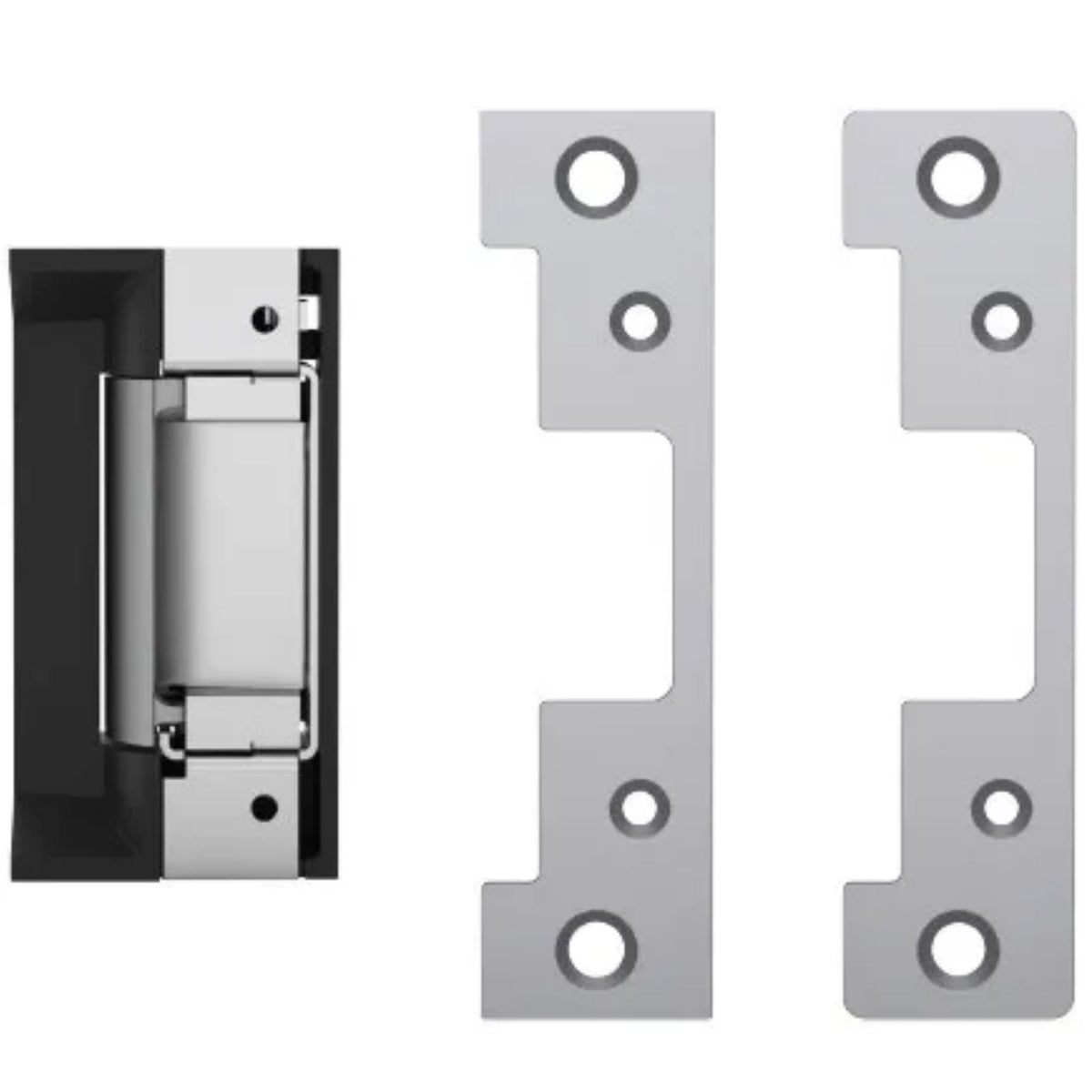

HES 5000C-630 Electric Strike: The 5000C works with cylindrical locksets up to 5/8" throw latchbolt. Included in the box are a 5000 strike bodyand 2 faceplates (501 and 501A).

The HES 5000C Electric Strike is a compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the HES 5000 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

The Grade 1, Low-Profile Solution for Cylindrical Locksets!

HES 5000C-630 Electric Strike, Complete Pac, Satin Stainless Steel
