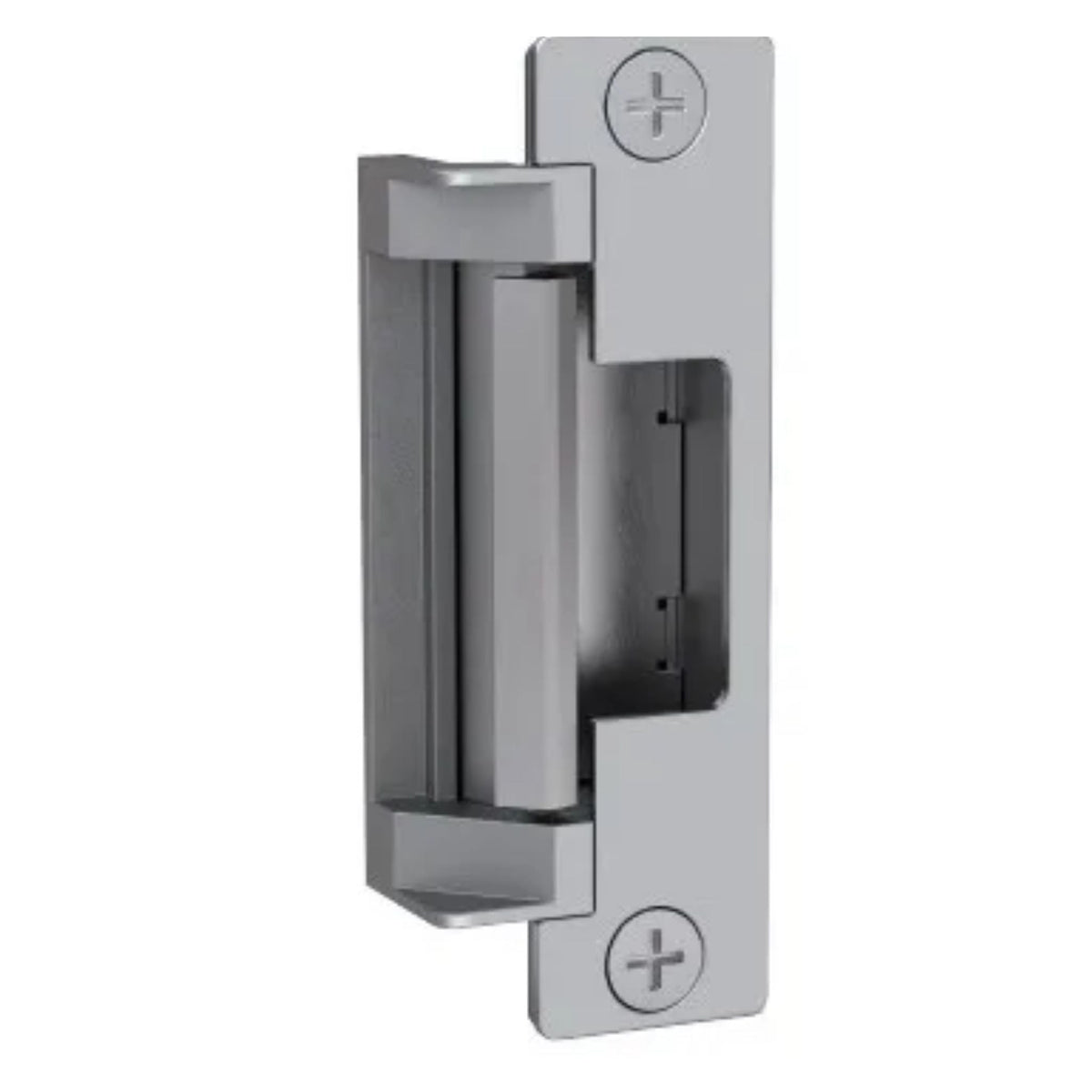

HES 4500C-630-LBSM Electric Strike Complete Pac Satin Stainless Steel with Latchbolt Strike Monitor (LBSM) - The Lock Source

Features

Latchbolt Strike Monitor - Monitors the locking mechanism in the electric strike is locked and the door will not open
Stainless steel construction
Tamper resistant
Static strength 1,500 lbs.
Dynamic strength 100 ft-lbs.
Endurance 1,000,000 cycles
Field selectable fail safe/fail secure
Dual voltage 12 or 24 VAC/VDC
Two faceplates provided to accommodate a variety of locksets
Non-handed
Internally mounted solenoid
Accommodates up to a 3/4" latchbolt
Strike body depth 1-3/8"
Plug-in connector
Trim enhancer
Full keeper shims for horizontal adjustment
Frame Application: Metal
Finish: Satin Stainless Steel (630) finish

Specification Data

ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed
UL 294 listed
UL 10C fire rated, 3-hour (fail secure only)
CAN/ULC-S104 fire door conformant
NFPA-252 fire door compliant
ASTM-E152 fire door compliant
California Fire Marshal listed
Dual voltage 12/24 VDC/VAC
240 mA at 12 VDC/120 mA at 24 VDC
PoE friendly

HES 4500C-630-LBSM Electric Strike, Complete Pac, Satin Stainless Steel

$683.00 $900.00 You save: 24% ($217.00)

SKU-HES-4500C-630-LBSM

HES 4500C-630-LBSM Electric Strike: The 4500C works with cylindrical and mortise locksets up to a 3/4" throw latchbolt.

The HES 4500C Electric Strike is designed to maintain 1/2" drywall penetration even in a 2" UL 10C fire rated frame. The HES 4500C features a low profile 1-3/8" depth and heavy-duty stainless steel construction. Its strength is derived from a unique keeper pin locking design, enabling the HES 4500C to exceed the ratings of the frame, door and locking hardware. The HES 4500C includes two faceplates designed to accommodate either cylindrical or mortise locksets up to a 3/4" throw latchbolt.

The Low Profile, Heavy-Duty, Fire-Rated Solution!

HES 4500C-630-LBSM Electric Strike, Complete Pac, Satin Stainless Steel
