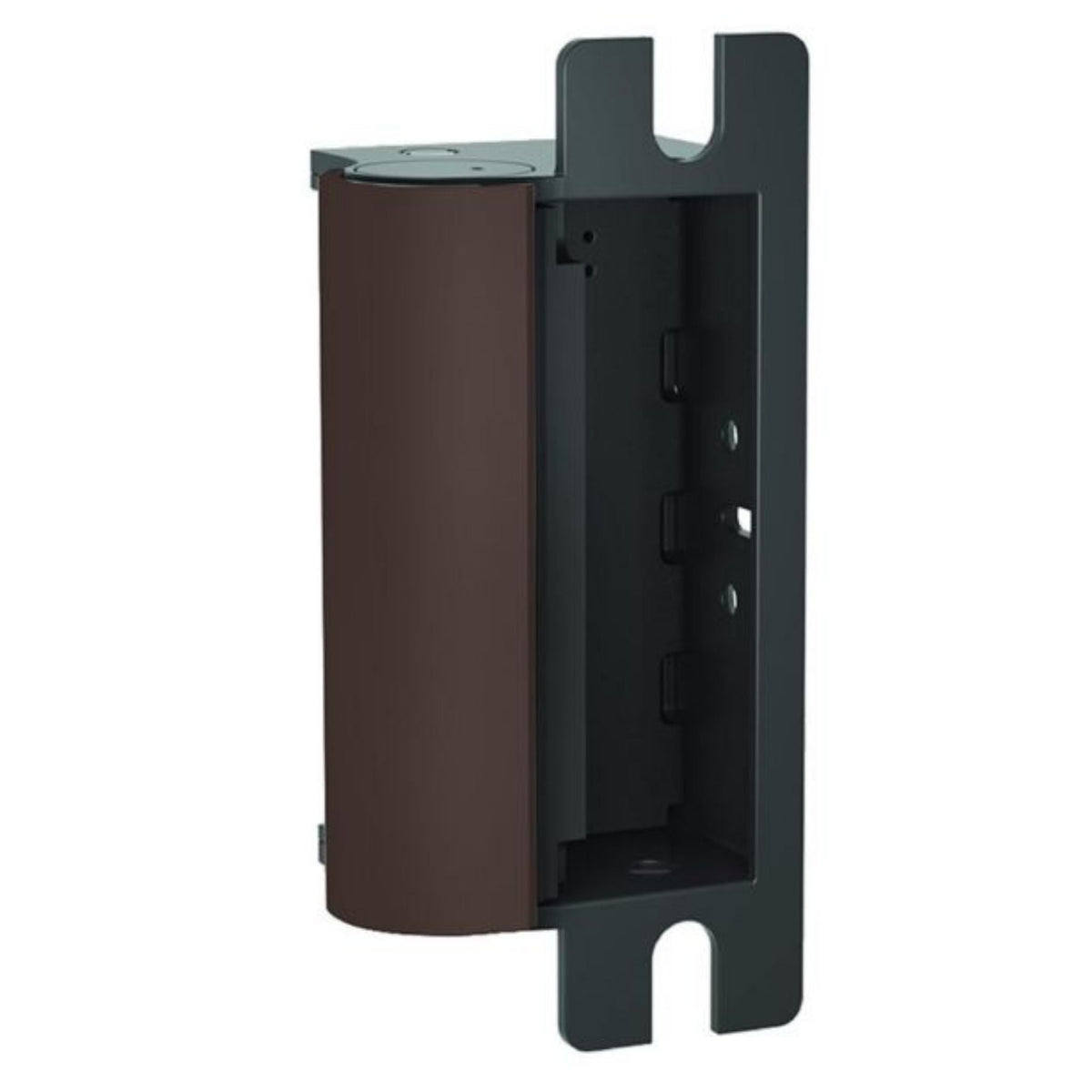

HES 1006-613 Bronze Toned-LBM Electric Strike with Latch Bolt Monitor - The Lock Source

Features

Fail Secure
Latchbolt Monitor - Monitors when the latchbolt is projected into the strike pocket
Stainless steel construction
Tamper-resistant
Static strength 3070 lbs. (fail secure)
Dynamic strength 350 ft-lbs. (fail secure)
Endurance 1,000,000 cycles
Fail secure (standard)
Dual voltage 12VDC or 24VDC continuous duty
Non-handed
Internally mounted solenoid
Accommodates up to 1" deadbolt
Plug-in connector
Full keeper shims for horizontal adjustment
Trim enhancer
Strike body depth 1-11/16" (43mm)
Frame Application: Metal & Wood
Finish: Oil Rubbed Bronze (613) finish

Specification Data

ANSI/BHMA A156.31, Grade 1
UL 1034 burglary-resistant listed and suitable for outdoor use
UL294 listed
RoHS compliant
UL 10C fire-rated, 3-hour single door (fail secure only)
UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
CAN/ULC-S104 fire door conformant
NFPA-252 fire door compliant
ASTM-E152 fire door complaint
ANSI/SD1 A250.13 windstorm resistant
Florida Building Code approved TAS 201, 202, 203
ANSI-ASTM E330
Sustainability documentation

HES 1006-613-LBM Electric Strike, Fail Secure, Oil Rubbed Bronze

$814.00 $983.00 You save: 17% ($169.00)

SKU-HES-1006-613-LBM

HES 1006 Electric Strike: The 1006 is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy-duty stainless steel construction enable it to exceed every standard developed for electric strikes. With multiple faceplate options, the HES 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs of static strength, 350 ft-lbs of dynamic strength, and factory tested to exceed 1 million cycles of operation, the HES 1006 is in a class of its own.

The strongest, most versatile electric strike available.

HES 1006-613-LBM Electric Strike, Fail Secure, Oil Rubbed Bronze
